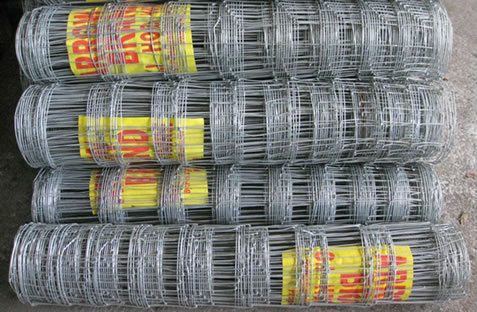

Delian supplies high tensile field fence made with hot dipped or galvanized steel wire. The zinc coating applied for hot dipped and electro galvanized fences vary in quantity. Hot dipped high tensile field fence costs more and offers better performances compared with electro galvanized field fence fabrics. The field fences are popularly made in the form of hinge joints to achieve better flexibility and strength.
Detail technical specification about high tensile field fence including surface treatment, zinc coating, mesh, wire and roll size as follow.
Material: Mild steel wire
Surface treatment:
Class A: Hot dipped galvanized hinge joint field fence(zinc coated:220-260g/m2)
Class B: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)
Class c: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)
Mesh Wire diameter:1.8mm~2.5mm
Edge wire diameter: 2.0mm~3.2mm
Field Fence Opening in cm:
(warp)15-14-13-11-10-8-6cm; ( 6" 5.5" 5" 4.5" 4" 3" 2.5")
(weft)15-18-20-40-50-60-65cm (6" 7" 8" 15" 20" 24" 25")
Field Fence Fabric Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m. We can also make as the request of the customer.
Fence Fabric Length: 115 inch(50m) or 330 inch(100m); (According to the request of the customer)

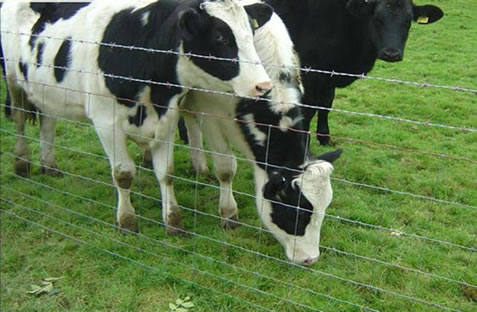

Application: High tensile field fence is used for borders in fields and grassland for breeding of deer, cattle and other animals.
Features: Hinge joint field fence offers corrosion resistance, high tensile strength, durable performance, etc.
It is also known as grassland fence, cattle fence, stock fence, animal fence, deer fence, Horse Fence etc.
Packing: packed by plastic film and wooden pallet
Details Specifications of Field Fences:
Item |
Type |
Mesh |
Top and bottom
Wire diameter
(mm) |
Inner wire
diameter
(mm) |
Roll diameter
(mm) |
Unit weight (kg/roll) |
1 |
7/150/813/50 |
102+114+127
+140+152+178 |
2.5 |
2.0 |
280 |
19.3 |
2 |
8/150/813/50 |
89(75)+89+102
+114+127+140+152 |
2.5 |
2.0 |
280 |
20.8 |
3 |
8/150/902/50 |
89+102+114+127
+140+152+178 |
2.5 |
2.0 |
280 |
21.6 |
4 |
8/150/1016/50 |
102+114+127+140
+152+178+203 |
2.5 |
2.0 |
280 |
22.6 |
5 |
8/150/1143/50 |
114+127+140+152
+178+203+229 |
2.5 |
2.0 |
280 |
23.6 |
6 |
9/150/991/50 |
89(75)+89+102
+114+127+140+152+178 |
2.5 |
2.0 |
280 |
23.9 |
7 |
9/150/1245/50 |
102+114+127+140
+152+178+203+229 |
2.5 |
2.0 |
280 |
26.0 |
8 |
10/150/1194/50 |
89(75)+89+102+114
+127+140+152+178
+203 |
2.5 |
2.0 |
280 |
27.3 |
9 |
10/150/1334/50 |
89+102+114+127
+140+152+178+203
+229 |
2.5 |
2.0 |
280 |
28.4 |
10 |
11/150/1422/50 |
89(75)+89+102
+114+127+140
+152+178+203+229 |
2.5 |
2.0 |
280 |
30.8 |
Remarks:
1.The meaning of the type: the first group means the numbers of horizontal wire;
the second group means length of the mesh size; The third group numbers mean the height of the fence, the fourth group stands for the standard length of the roll.
2. The width is from 0.8 meter up to 2.0 meters. The length is 50 meters or 100 meters per roll.
3. Surface treatment can be made with electro galvanized or hot dipped galvanized.
The latter is much more durable than the former.
4. Special size can be customized according to detailed drawing.
